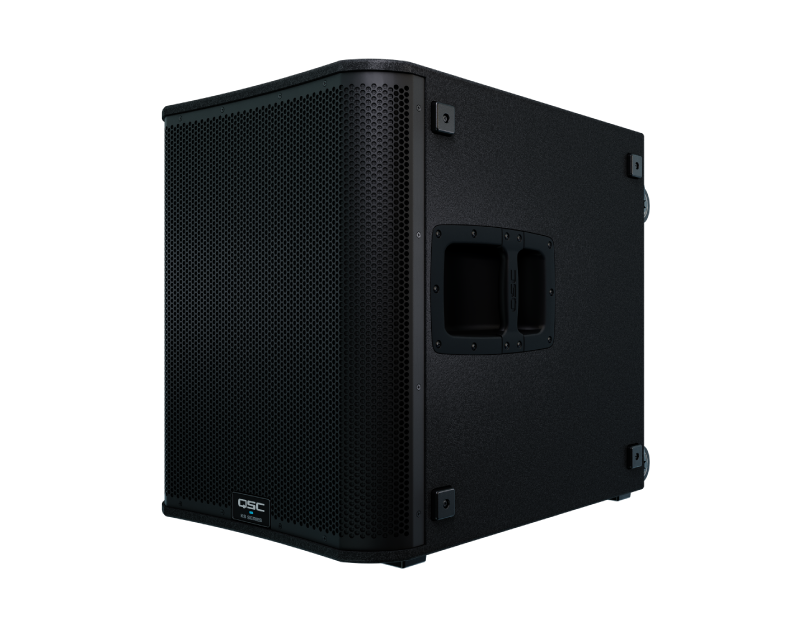

Commanding Low End

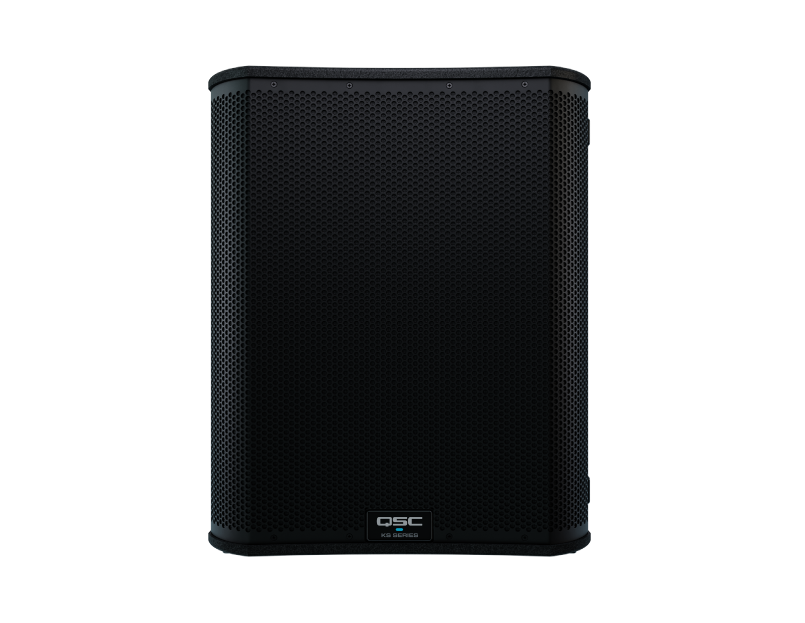

The QSC KS118 is a very high-output active subwoofer delivering impressive low-frequency performance for mobile entertainers, AV production and venues. Featuring an 18-inch direct-radiating driver powered by a 3600 watt Class D amplifier, it produces high sound pressure levels with dynamic, musical reproduction. Onboard DSP optimizes performance, offers selectable DEEP™ mode for ultra-low sub-bass response, and enables advanced cardioid array capabilities.

Key Features

Core Performance​​​​​​

  • 3600-watt peak power
  • 18-inch long-excursion driver
  • Covers low-end frequencies down to 35 Hz (-10 dB)
  • 136 dB @ 1 m (peak SPL)

Advanced Control & DSP

  • Onboard Digital Signal Processing (DSP): Optimizes, tunes, and protects the system under heavy use
  • Selectable DEEP™ Mode: Provides deep sub-bass extension to capture subterranean frequencies without risking distortion or over-excursion.

Professional Directivity & Array Control

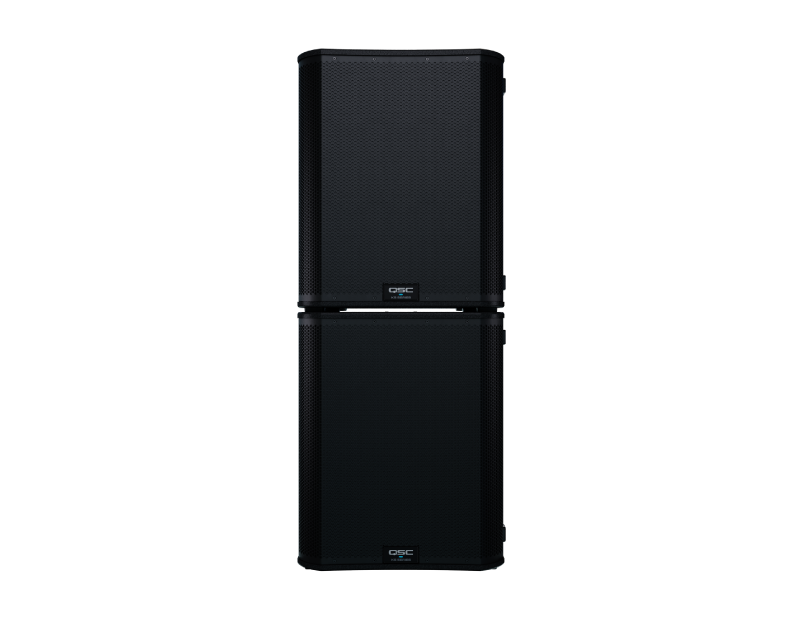

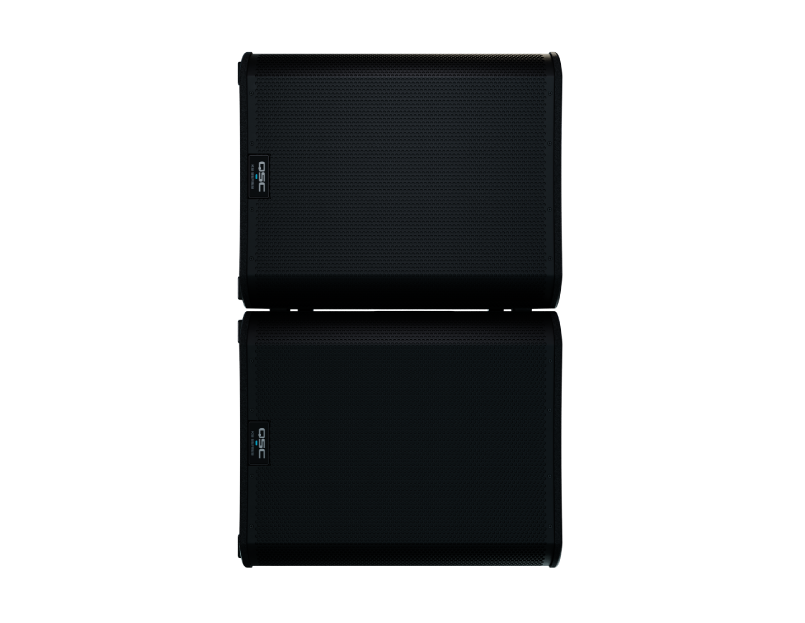

  • Vertical and Horizontal Deployment options.
  • Cardioid Array Capabilities: Easily set up highly directional cardioid sub configurations when deploying two or more units, significantly dropping low-frequency stage volume.
  • Omnidirectional or Directional Steering: Control your bass dispersion based on venue acoustics and specific audience coverage needs.

Tour-Ready Durability & Portability

  • Rugged Wood Enclosure: Premium wood cabinet construction with a heavy-duty painted finish

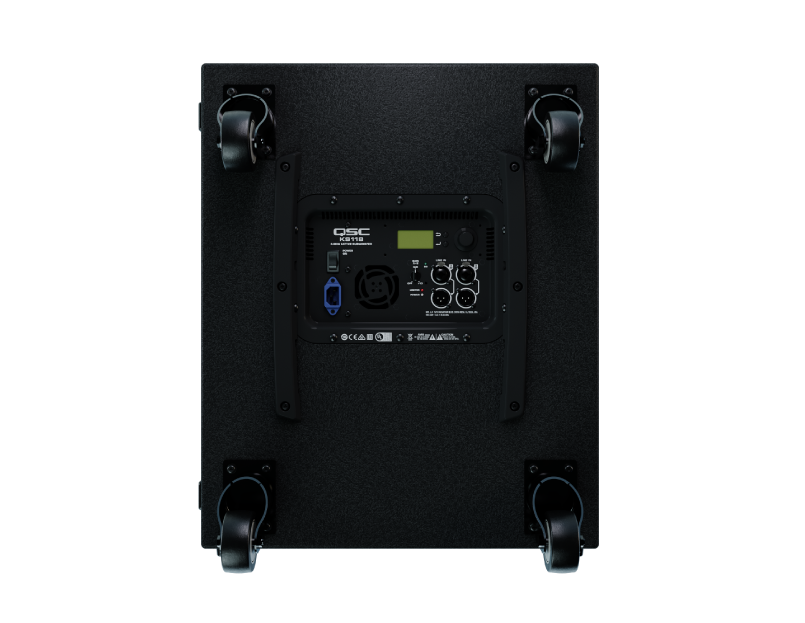

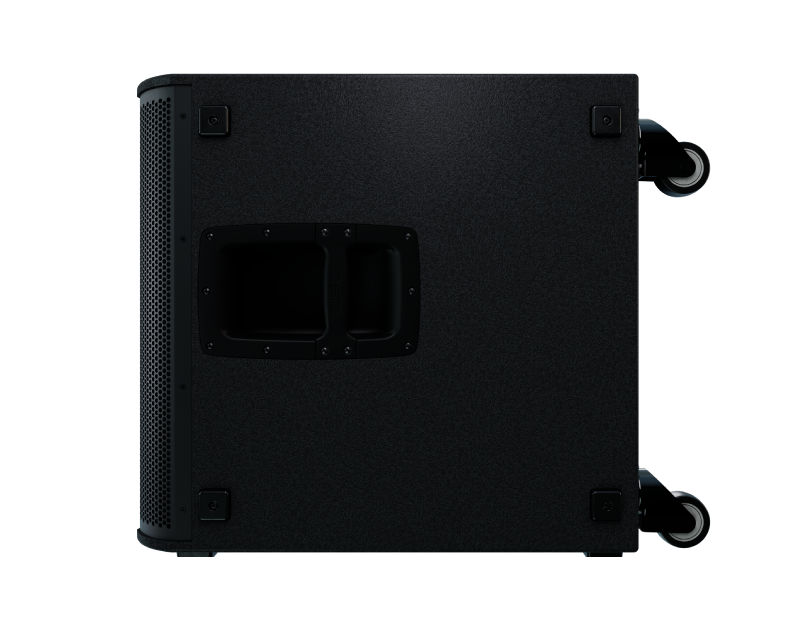

  • Effortless Mobility: Equipped with four heavy-duty, smooth-rolling casters on the rear panel

Directivity Control Options

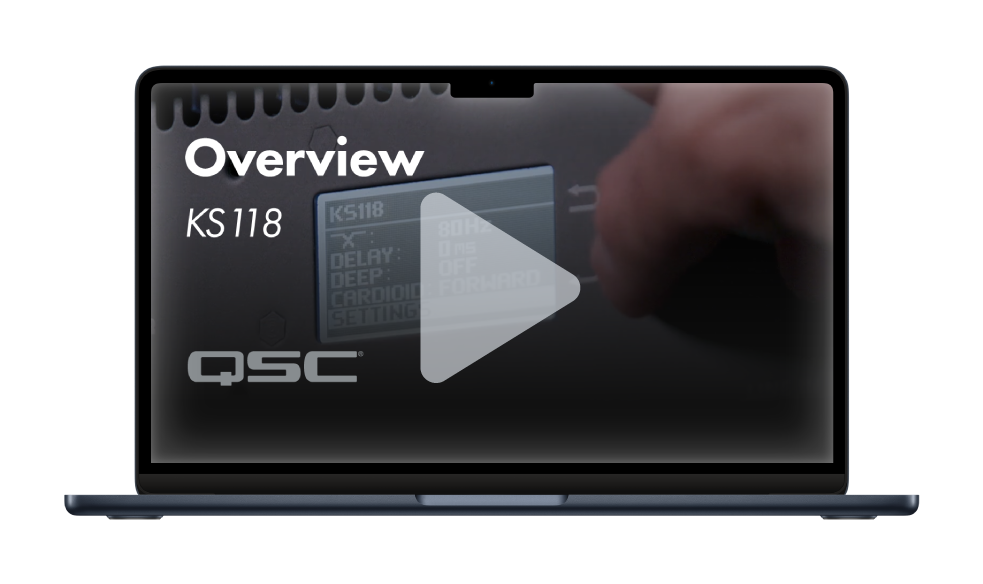

KS118 Training Videos

KS118 Accessories

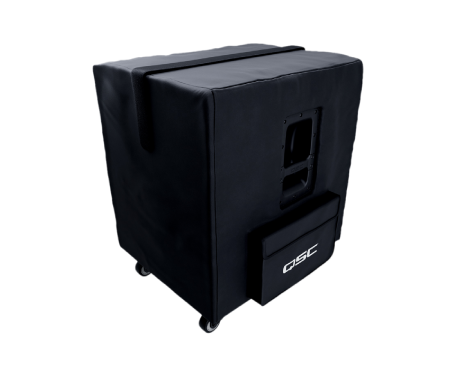

KS118 Transport Cover
Soft cover made with heavy-duty Nylon/Cordura® material for the KS118 or LS118, with grille guard.

learn more

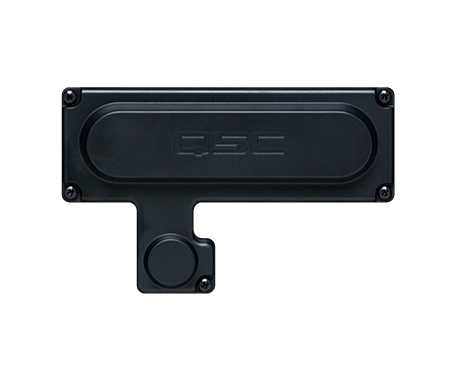

KS Lock Out Cover
Lock Out Cover for KS Series. Screw-down tamper-proof cover for LCD menu and Input Gains.

learn more

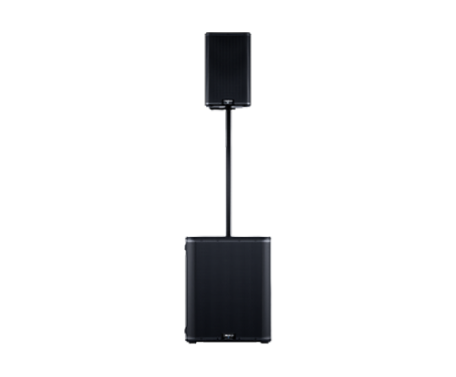

Loudspeaker Pole Extension (16‑inch)
16-inch (406 x 35 mm) loudspeaker extension pole with male and female M20 thread.

learn more

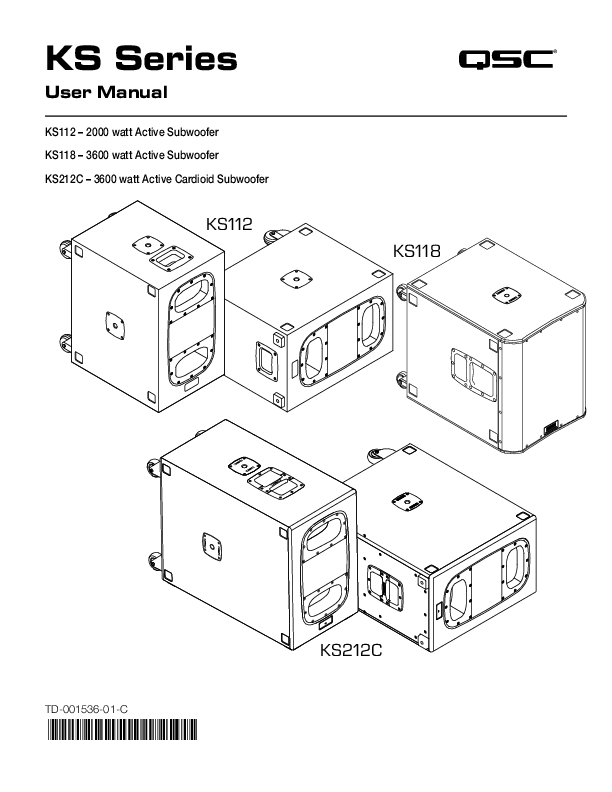

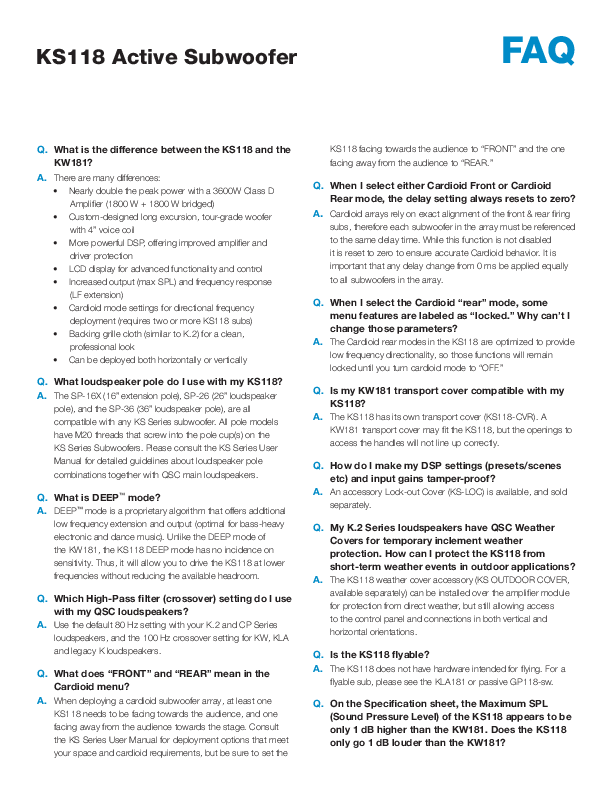

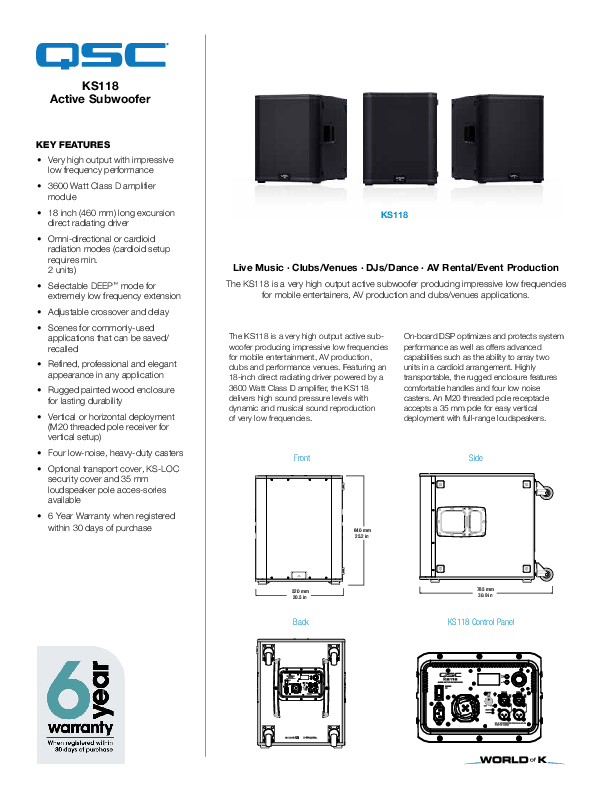

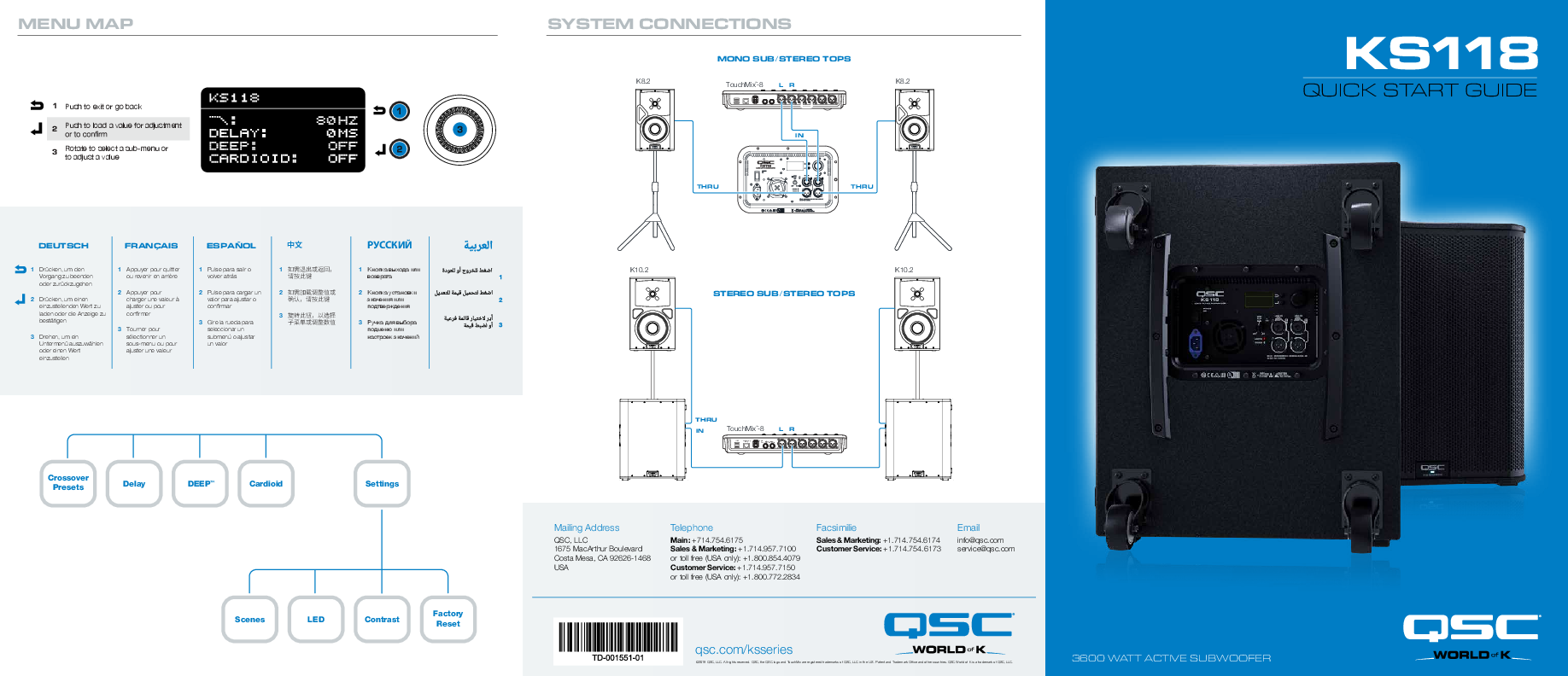

Resources

Model KS118
Configuration Direct Radiating
LF Transducer: 460 mm (18 in), Cone
Frequency Response (-6 dB) 41 Hz - 98 Hz
Frequency Range (-10 dB) 35 Hz - 111 Hz
Nominal Coverage Angle: Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
Maximum Rated SPL1: 136 dB @ 1 m (peak)
Amplifier: Class D
3600W (peak)
Cooling: Low-noise, variable speed fan
Controls: Power On/Off
Gain Control
Rotary encoder
2 × selection buttons
Indicators: 2 × Power LED (front and rear)
Input Signal LED
Limiter active LED
Connectors: 2 × locking XLR/F ¼ inch combo
2 × XLR/M (Loop-thru Output)
1 × locking IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power): 100 VAC, 3.6 A / 120 VAC, 3.0 A / 240 VAC, 1.7 A
Enclosure: 15 mm birch plywood
Color: Black (RAL 9011)
Grille: 16-gauge Black Powder Coated Steel

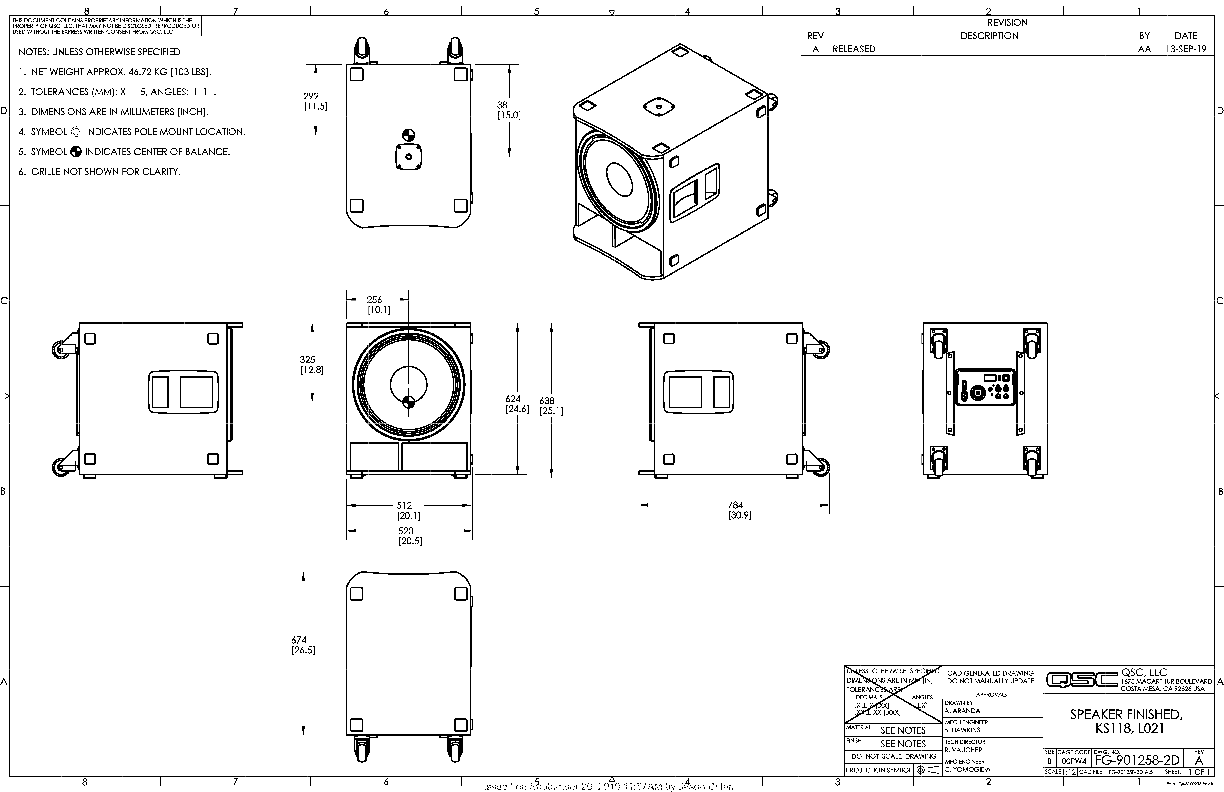

Speaker Dimensions (H×W×D): 640 × 520 × 785 mm
25.2 × 20.5 × 30.9 in
Carton Dimensions (H×W×D): 360 × 360 × 496 mm
14.2 × 14.2 × 19.5 in
Net Weight: 47 kg / 104 lb (including casters)
Shipping Weight: 56.5 kg / 124.6 lb

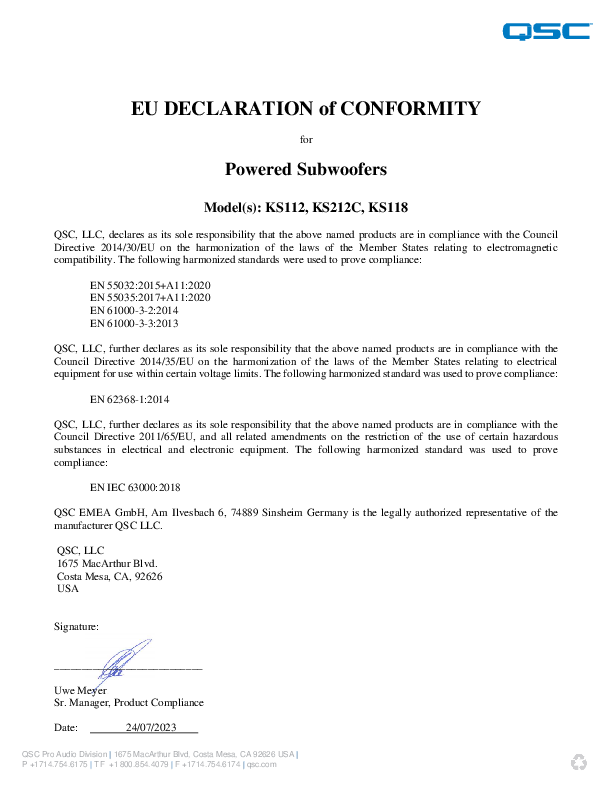

Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Included Accessories: 4 × Low-Noise, Heavy Duty Casters
Optional Accessories: KS118 CVR Transport Cover, KS-LOC Lock-Out Cover
SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole


1Peak SPL is measured on-axis, at 1 meter, using Pink Noise, Crest factor 10 dB unweighted.

All specifications are subject to change without notice.
