Jumper Kits
LS-KIT-J and LS-KIT-J-NA
Features

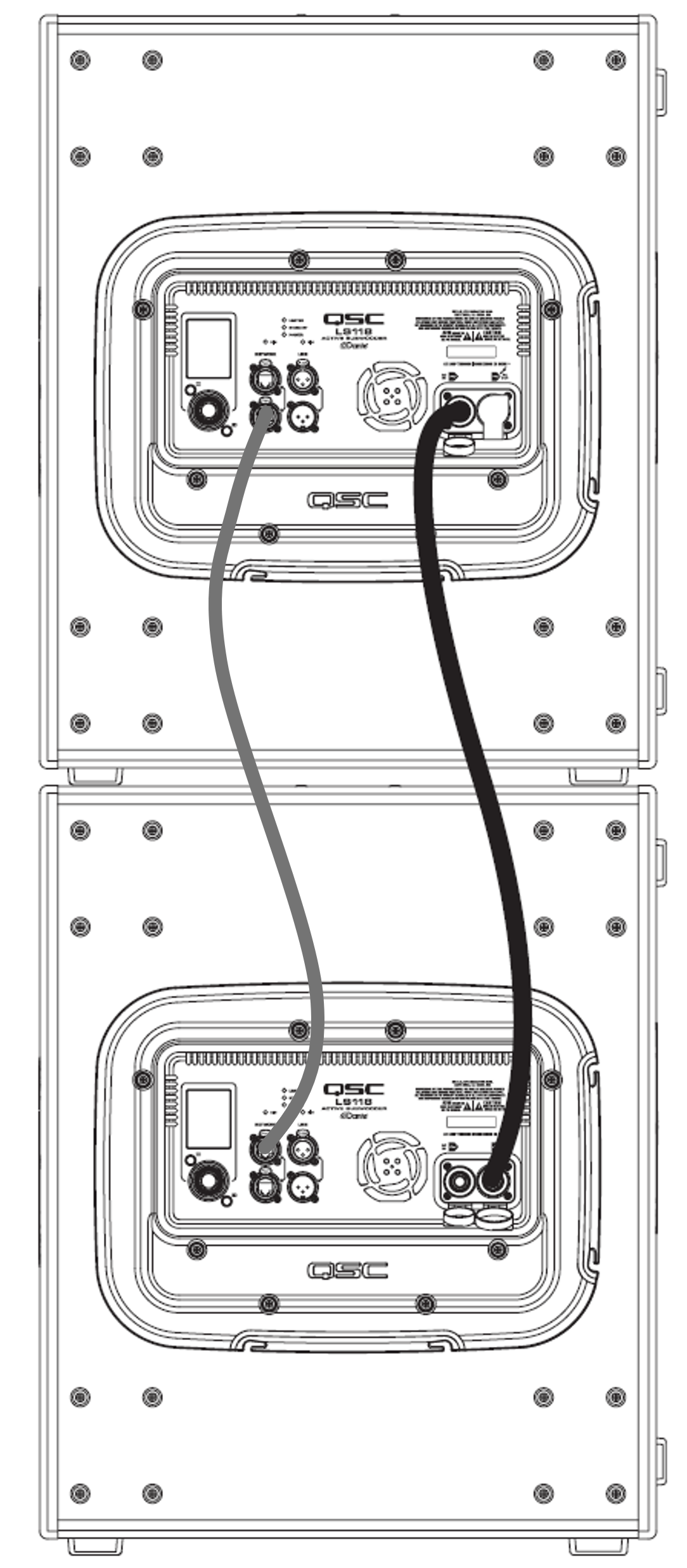

The Jumper Kits (LS-KIT-J and LS-KIT-J-NA) allow to daisy-chain 2 pairs (4 units) of LS118 subwoofers together for both AC Power (PowerCON TRUE1) and network (EtherCON) connections.
Note: The PowerCON TRUE1 cable and connector system is rated for a maximum current draw of 16 amps and allow to power a maximum of three (3) LS118 subwoofers from a single connection to the AC mains supply (see User Manual for more information).
LS-KIT-J
International Jumper kit containing 2x 1.2 m PowerCON TRUE1 and 2x 1.2 m EtherCON jumpers (1.5 mm2/H05VV cables)
LS-KIT-J-NA
North American Jumper kit containing 2x 48-in PowerCON TRUE1 and 2x 48-in EtherCON jumpers (12 AWG/SVT cables, NEC compliant)
